Stock ID A49

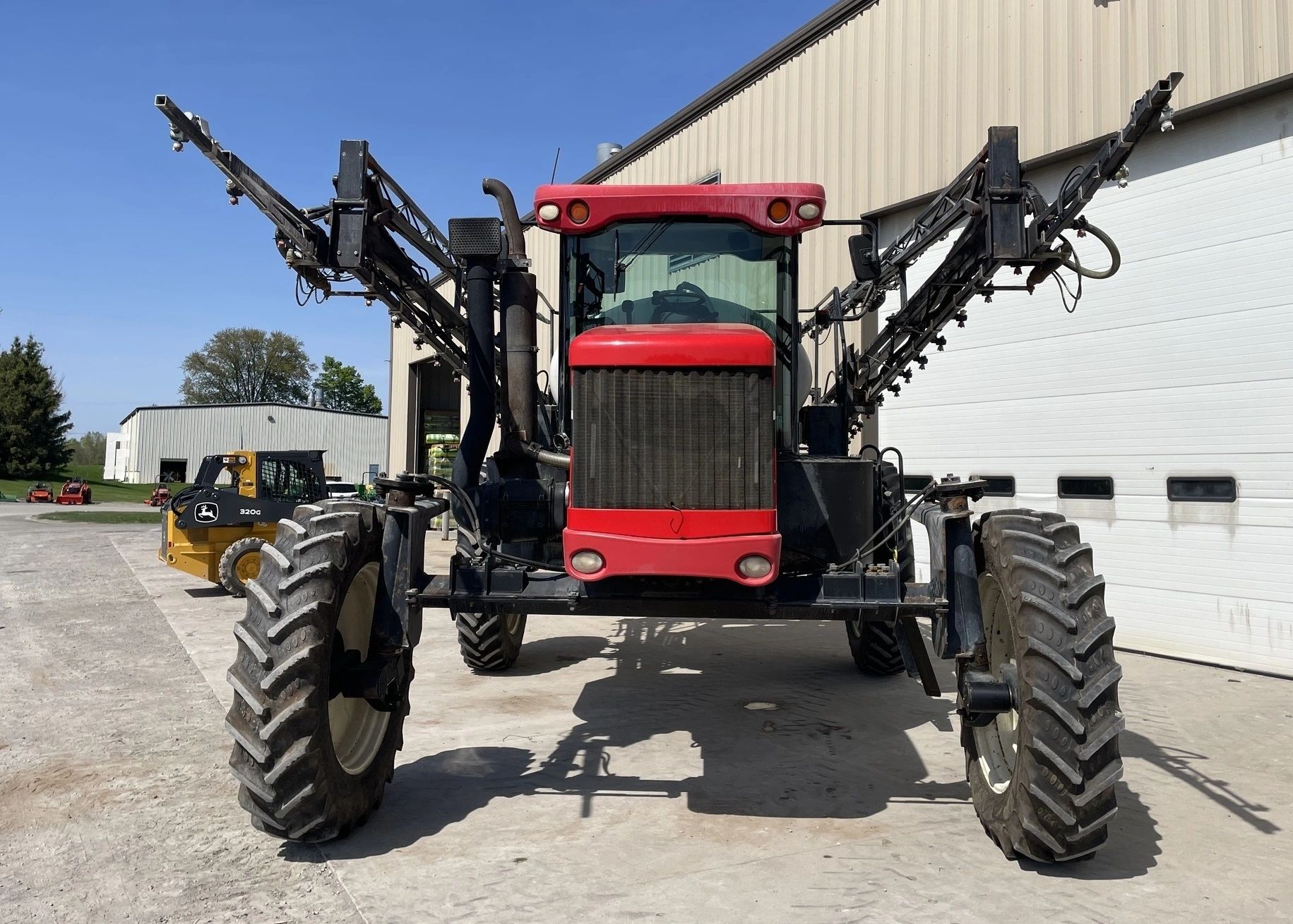

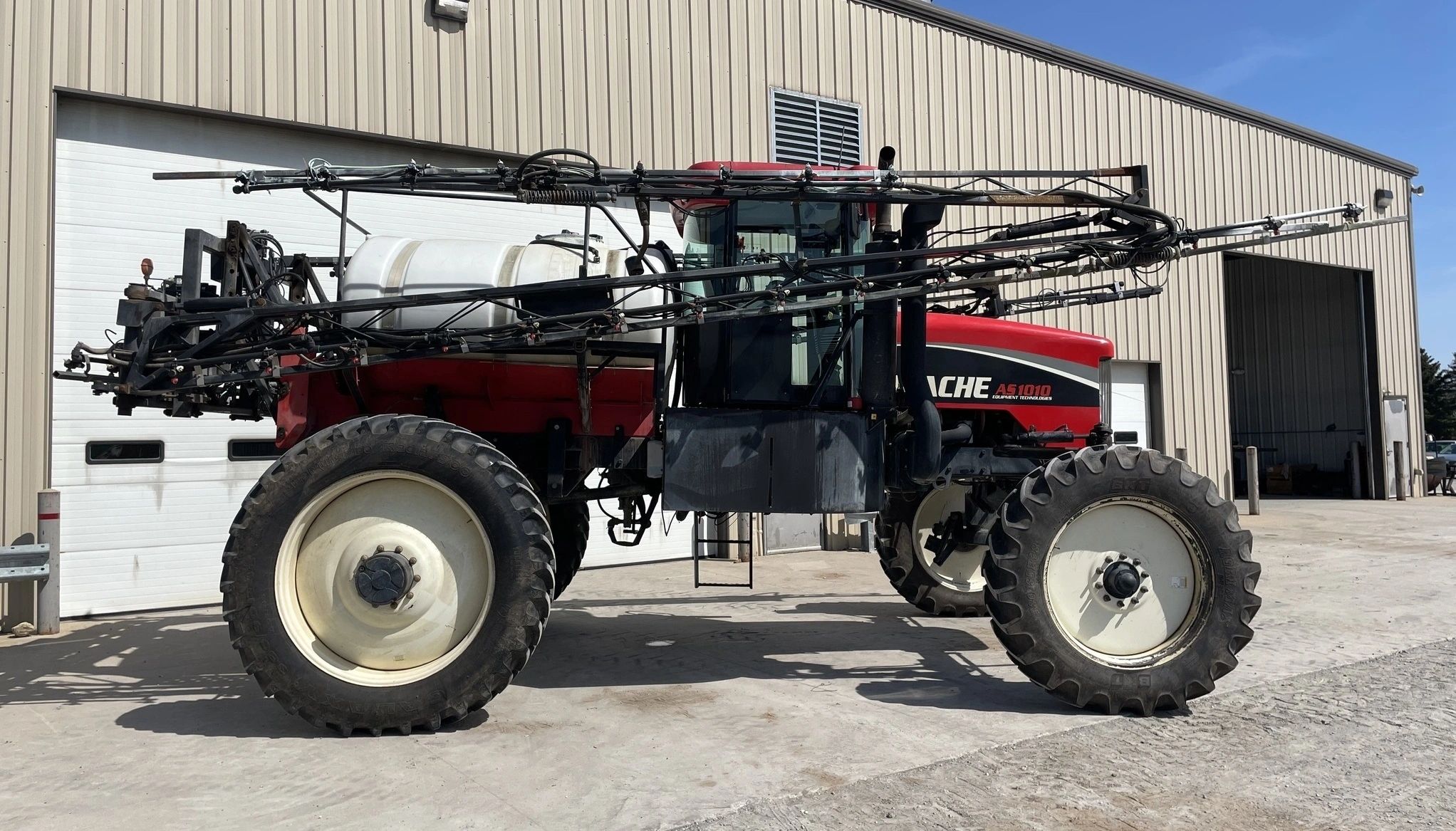

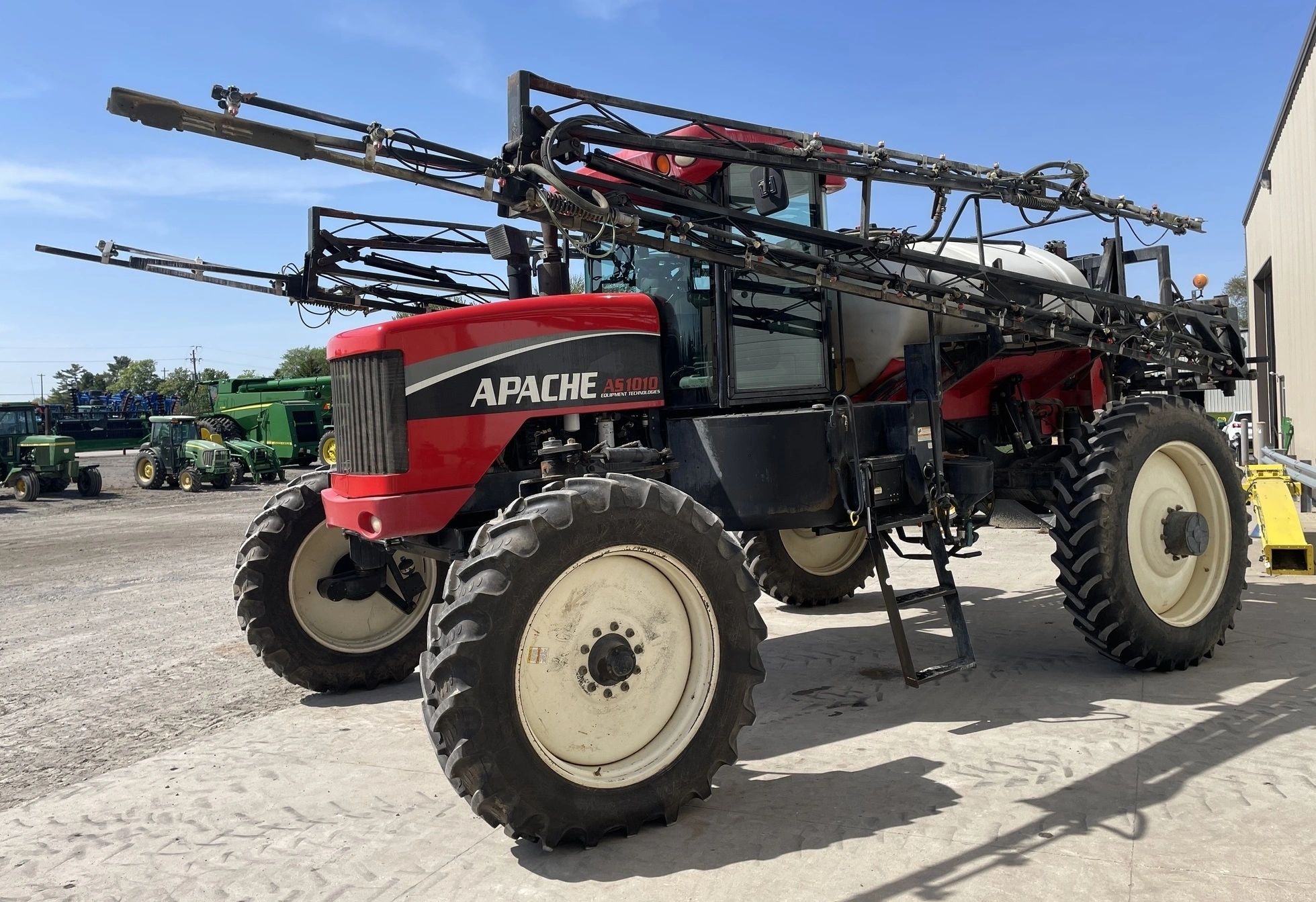

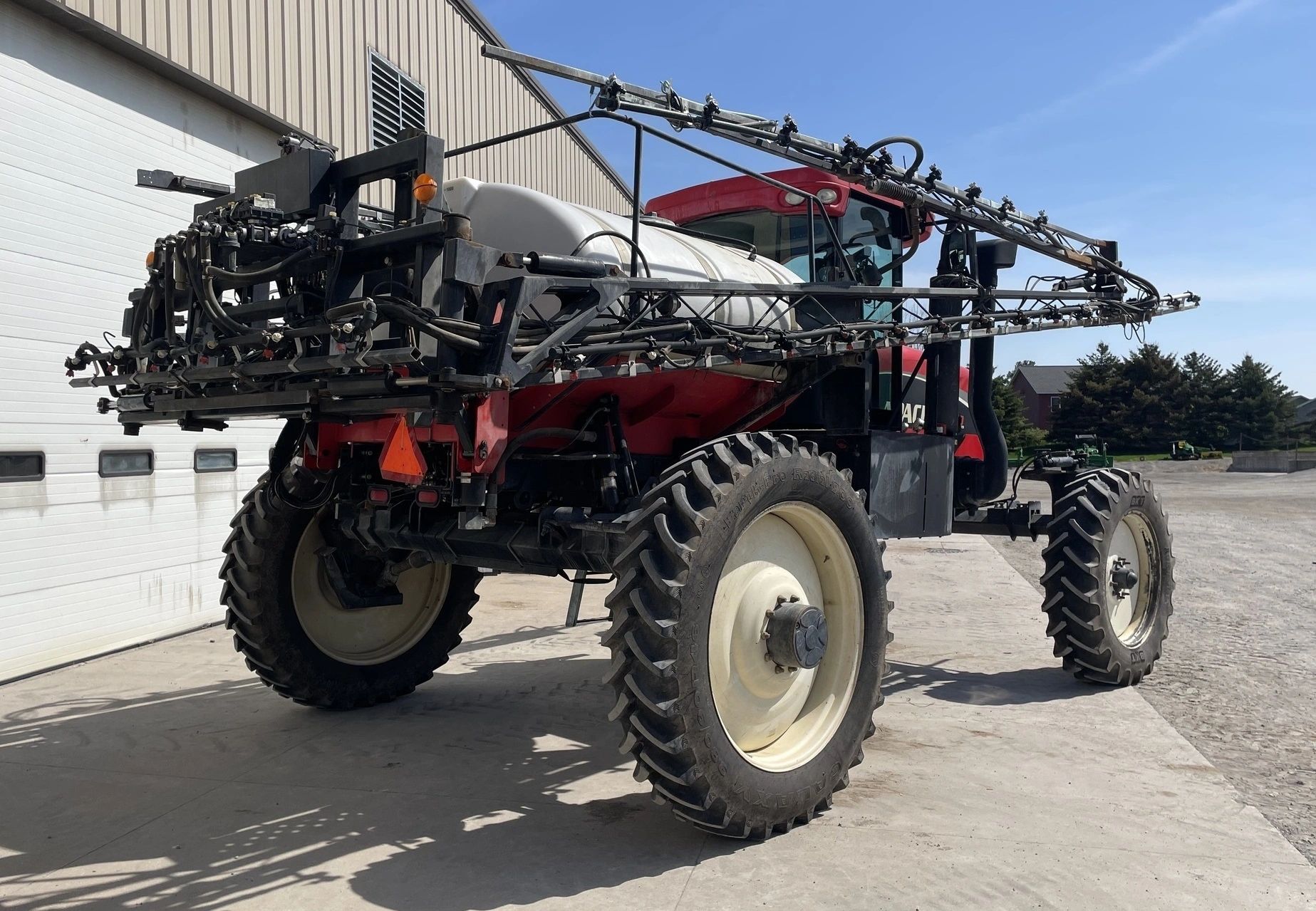

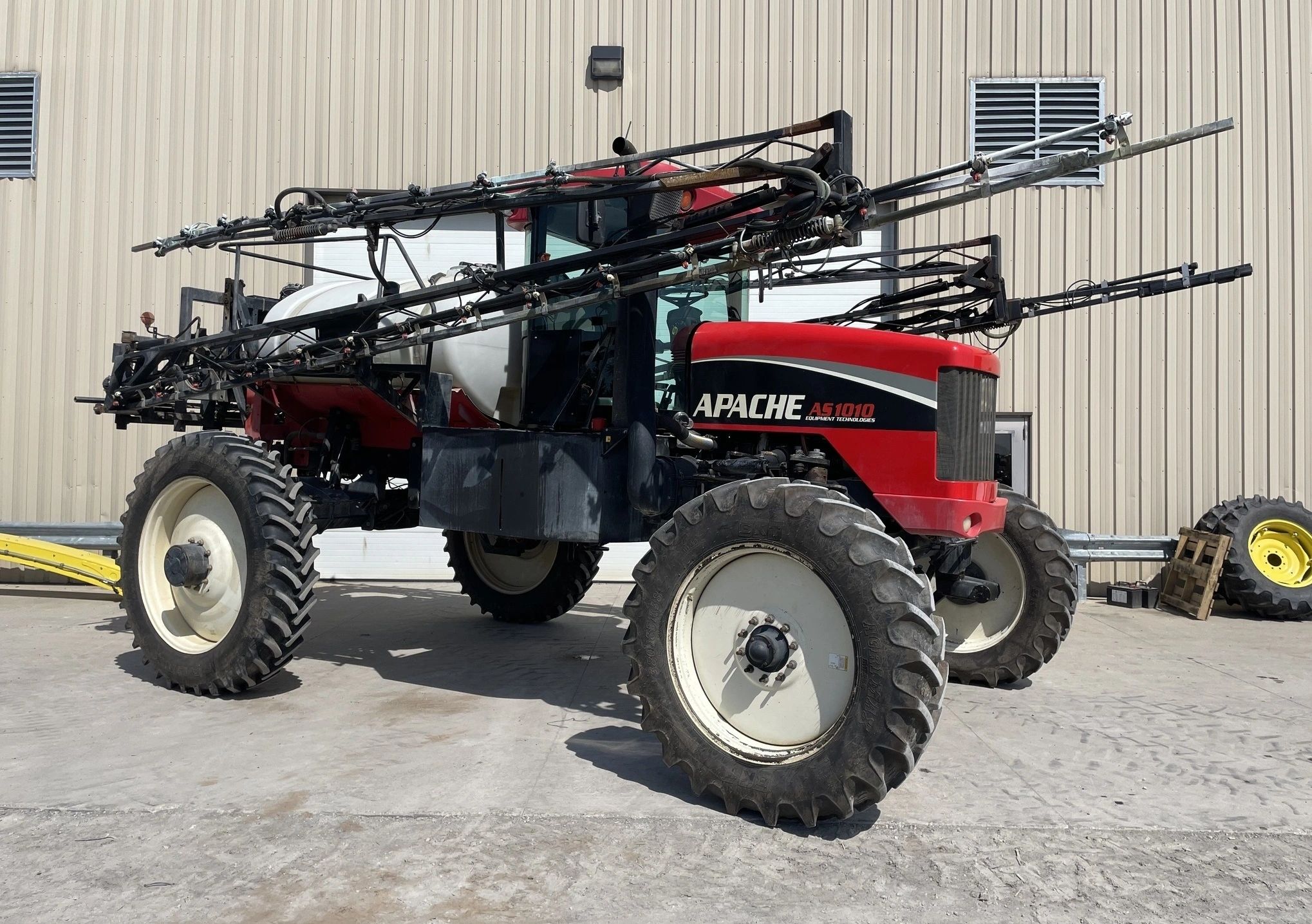

2009 Apache AS1010 (1)
This is a third-party equipment listing. D.E. Agora Agricultural Equipment provides sourcing services and confirms availability and current price before quoting.
Listing details & specifications
Specifications are reproduced from the listing. Confirm the machine’s identity, condition, configuration and included attachments with our team.

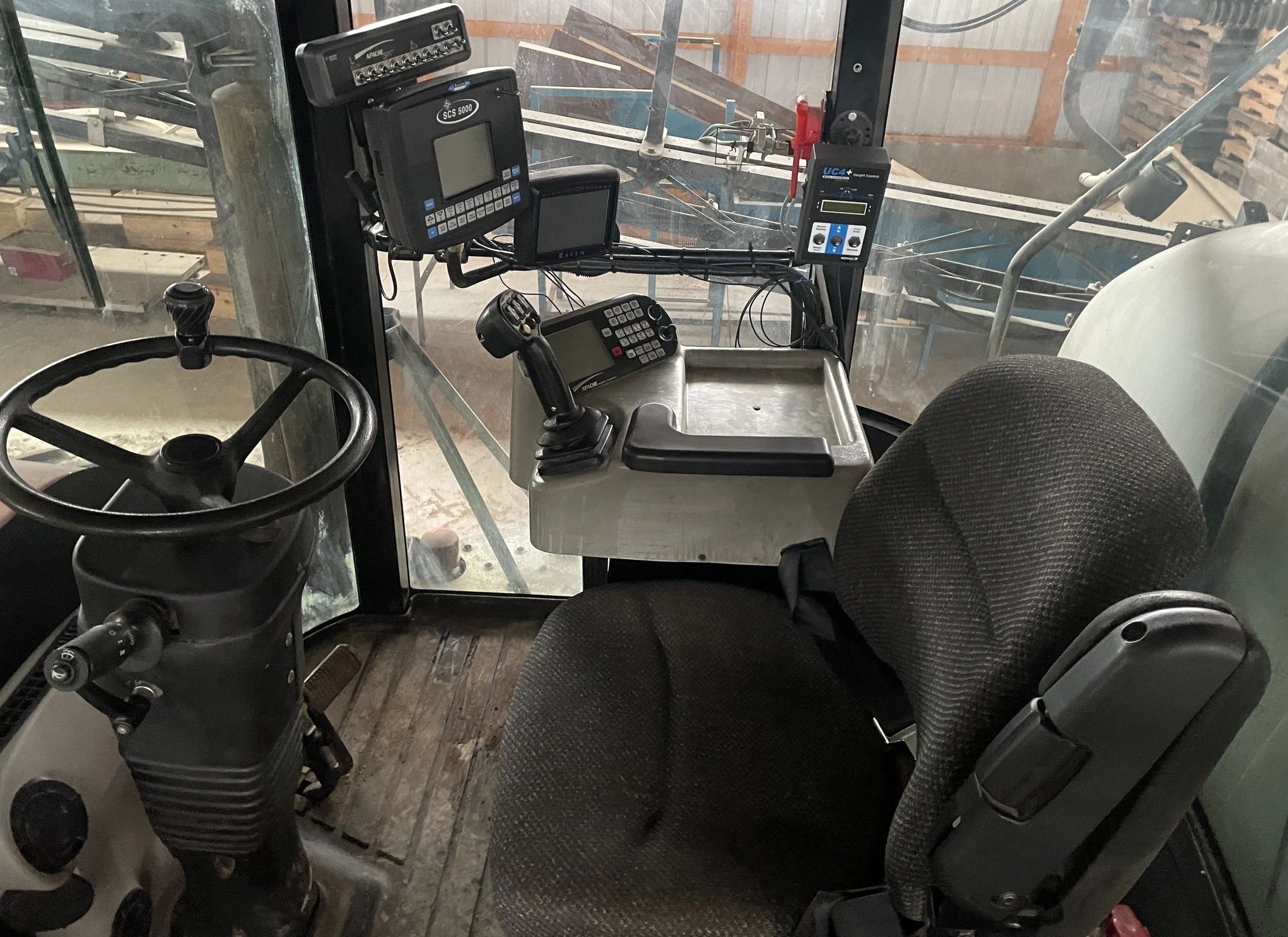

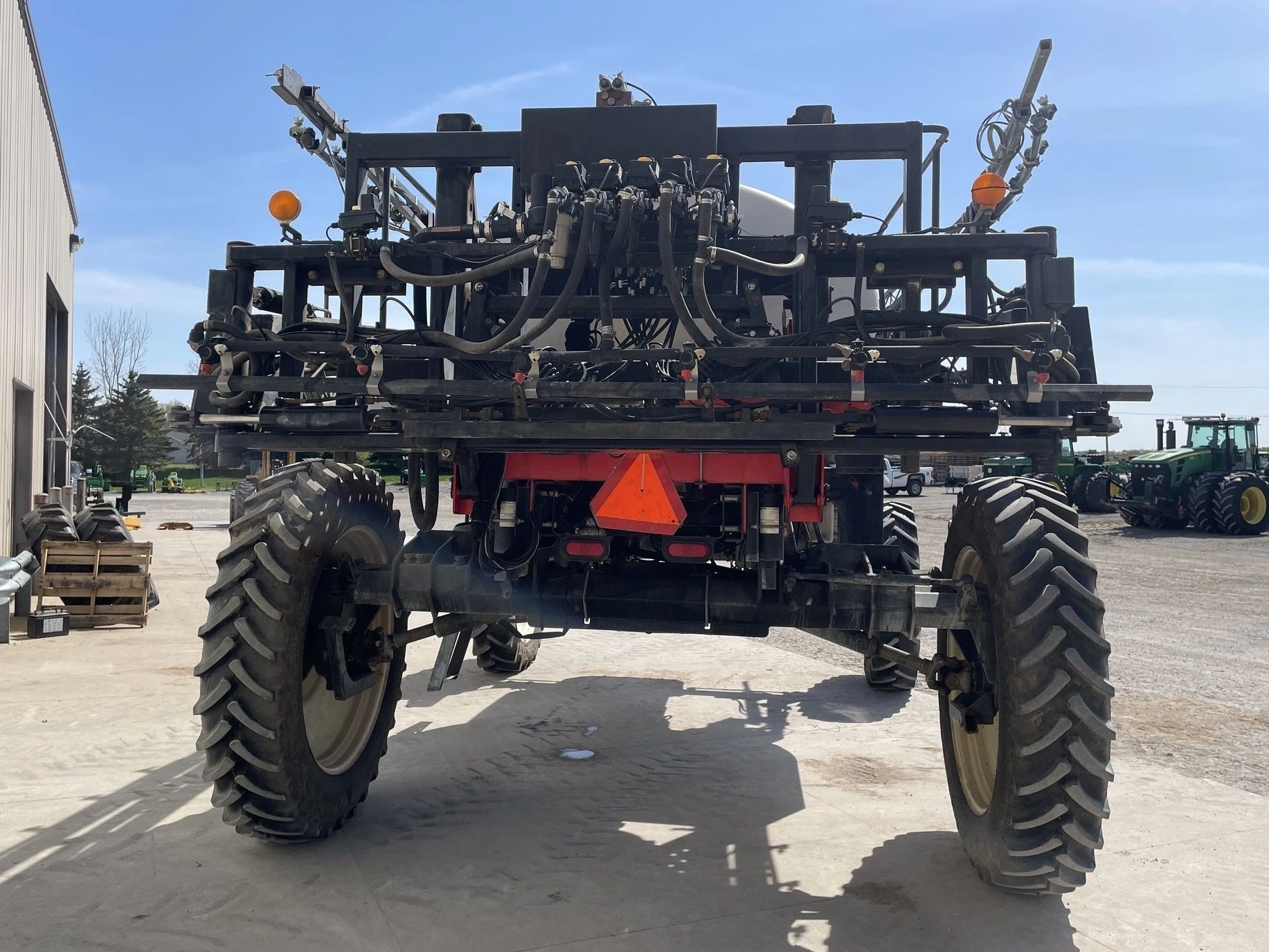

SKU A49 Hours : 3233 (3 March 2023) Specifications : Boom width: 90 feet (27.43 meters) Drive: 2WD (two-wheel drive) Capacity: 1000 gallons (3785 liters) Front tires: 380/85/R38 (90%) Rear tires: 380/90/R46 (90%) Chemical eductor: yes Tread adjustment: manual Rate controller: Raven SCS5000 Boom control: NORAC GPS: Raven Cruizer Nozzle spacing: 20 inches (0.51 meters) Here are the extended technical specifications of the self-propelled sprayer 2009 Apache AS1010: Engine : Type: Cummins Tier III Power: 215 hp (160 kW) Torque: 655 lb-ft (887 N·m) at 1500 rpm Tank capacity : Spray solution: 850 gallons (3200 liters) Boom : Adjustable width: from 60 to 100 feet (18,3 to 30,5 meters) Nozzle spacing: 20 inches (50 cm) Maximum boom height: 74 inches (188 cm) Minimum boom height: 14 inches (35,6 cm) Overall dimensions : Length: 27 feet (8,23 meters) Transport width: 12 feet (3,66 meters) Height: 10 feet (3,05 meters) Wheelbase: 14,42 feet (4,4 meters) Ground clearance: 3 feet (0,91 meters) Transmission : Type: ITL (JCB) Powershift Number of gears: 6 front and 6 rear Tires : Front: 12.4 x 28 Rear: 380/90R46 Tire pressure: 30 psi (2.1 bar) Hydraulic system : Type: Closed system Pump capacity: 26 gpm (98,4 L/min) Control system : Section control: Yes Automatic height adjustment: Yes Monitor: Raven Envizio Pro with an option for AutoTrac Control system : Compatible with GPS (for example, EZ-Steer and FM750) Additional features : Aerodynamic boom shape Active suspension system for comfortable operation Foam marker capacity 50 gallons (189 liters) High-quality cab with air conditioning and radio Protective maintenance shields Made with polymer pipes to reduce corrosion Weight : Minimum dry weight: 17 329 lb (7850 kg) These specifications highlight the efficiency and reliability of Apache AS1010 in agriculture, making it a popular choice among agronomists.
