Stock ID T10

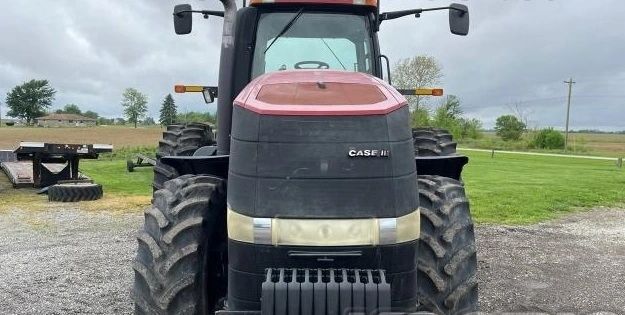

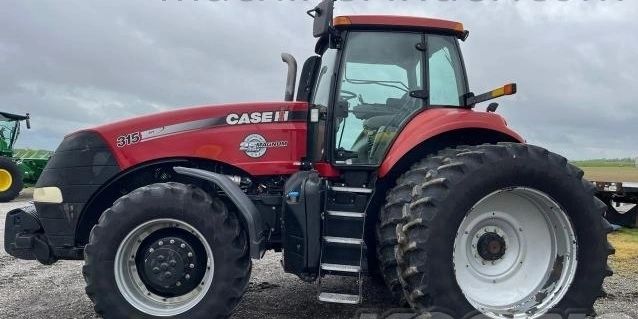

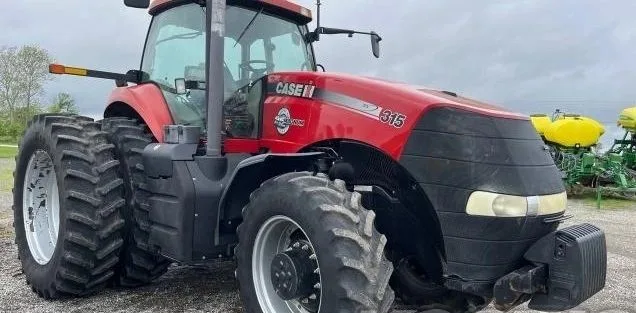

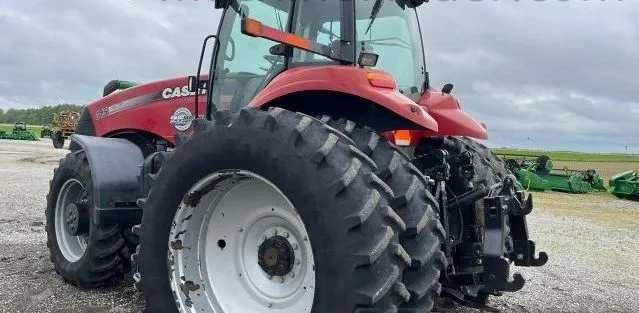

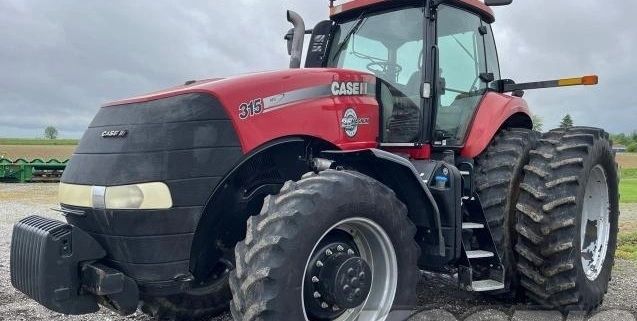

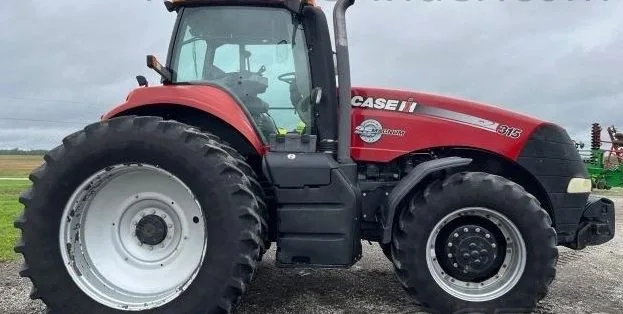

2013 Case IH Magnum 315
This is a third-party equipment listing. D.E. Agora Agricultural Equipment provides sourcing services and confirms availability and current price before quoting.
Listing details & specifications
Specifications are reproduced from the listing. Confirm the machine’s identity, condition, configuration and included attachments with our team.

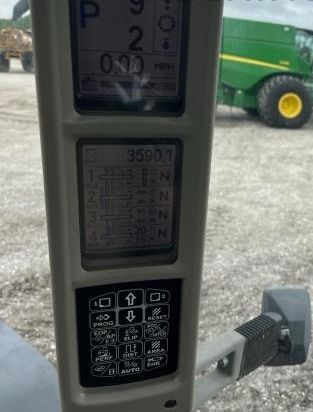

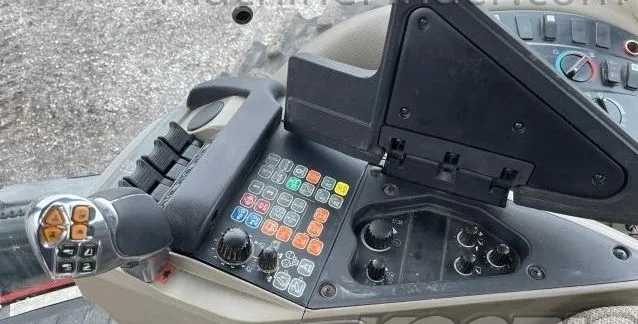

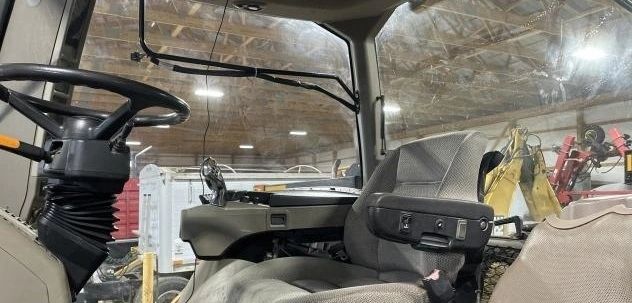

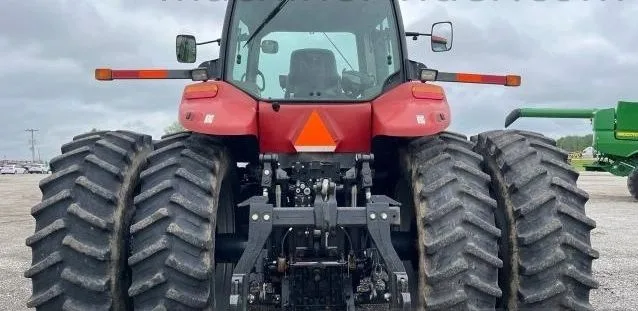

SKU T10 Hours: 3589 (10 May 2024) Power: 315 hp Cab: Yes Drive: MFWD Transmission type: Power Shift Guidance ready: Yes Tires: Dual Front tires: 520/85R46 with dual axles Seat suspension: Yes Instructional seat: Yes Mechanical front-wheel drive: Yes Front shields: Yes Four rear hydraulic outlets: Yes Quick-release 3-point lift: Yes Warning light: Yes Exterior rear-view mirrors: Yes Front weight support with 10 weights: Yes Tractor Case IH Magnum 315, released in 2013 model year, is a powerful agricultural tractor designed for heavy-duty work. Here are its main specifications: Engine: Type: 6-cylinder diesel engine FPT with capacity 8,7 liters. Rated power: 312 hp (232,7 kW). Maximum power: 347 hp (258,8 kW). Rotational speed: 2000 rpm. Fuel tank capacity: 635,9 liters. Transmission: Type: Full longitudinal shift with 19 front and 4 reverse gears. Maximum speed: 40 km/h. Dimensions and weight: Wheelbase: 304 cm. Weight: 12 610 kg. Hydraulic system: Type: Flow- and pressure-compensated system. Pump capacity: 166,5 L/min. Number of hydraulic outlets: 4 standard, expandable to 6. Lift capacity: Rear three-point hitch: to 7 427 kg. Front lift (optional): to 4 275 kg. Additional features: Cab: Magnum Surveyor with optional suspension. Hydraulic control: Full hydraulic steering with expansion capability. Guidance system: Compatible with AFS Connect for precision farming. This tractor is ideal for heavy agricultural work such as working large areas, plowing and other tasks requiring high power and reliability.
